KIT FS-30s (Art. 259)

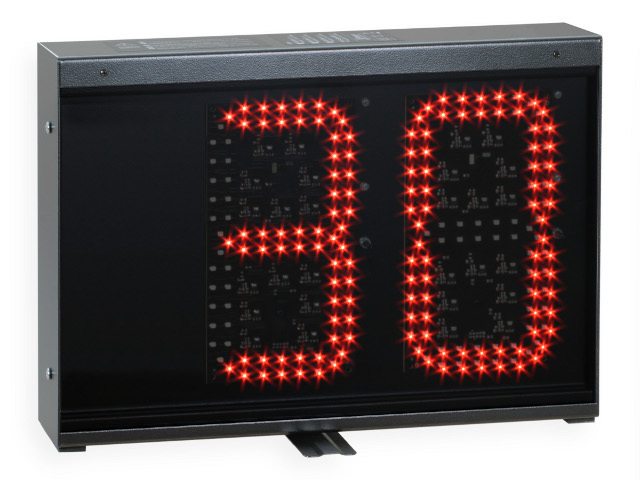

The KIT FS-30s is designed for displaying ball possession time in Water Polo. Current regulation possession time is 30 seconds.

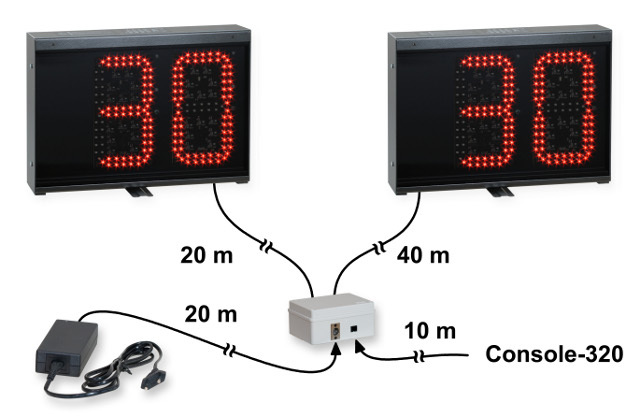

The KIT FS-30s is composed of two 30-seconds display panels and a 24V power supply unit which secures isolation of the electrical power supply. The power supply unit comes with a 20m cable for connection from points far from the pool.
CHARACTERISTICS
- 20cm-high digits in red.
- Distance and readability angle: 90m (300ft), 150 degrees.
- No front protection cover required. Complies with DIN 18032-3 and UNI 9554:1989 standards on "resistance to damage from balls".
- End of time acoustic buzzer on each display.
- Connecting cables to the 2 display panels: 1 x 20m + 1 x 40m, supplied.
- Connecting cable to the power supply unit for securing isolation of the electrical mains: 20m, supplied.
- Connecting cable to the control console: 10m, supplied.
- Conformal Coating (anti-moisture) of the electronic boards.
- Possibility of adding two more 30-seconds display panels (art.259-01).
- Guarantee: 2 years (info).
- Dimensions and weight of each display panel: 41x29x8.5cm, 5.1kg.
- Power supply: 100-240Vac, 50-60Hz, 60VA. Select the type of plug for the power supply cord when ordering.
ACCESSORIES (not included):
- Console-700 Art.308-01 ... >> Photo
The 30 seconds indicators are controlled using the "Console-700" control console for the electronic scoreboard, which we recommend be connected to the "Time-Console-03", especially designed with 3 convenient levers to make it easier to operate the 30 seconds shot clock.
-

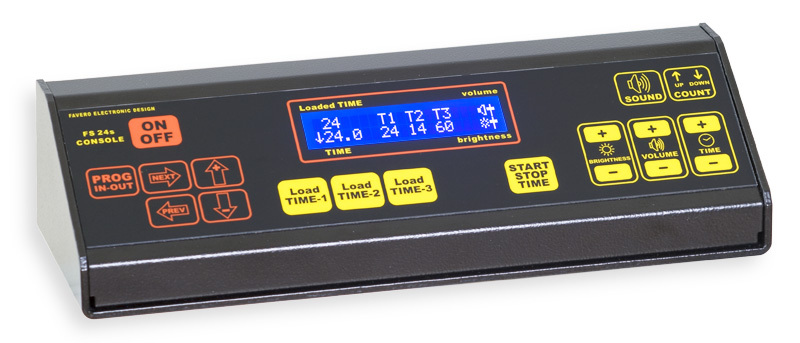

FS-24s-CONSOLE (Art.233-10) ... >> Link ... >> Photo
The FS-24s-CONSOLE is used only if the Console-700 (art.308-01) is not at one’s disposal. It is used for autonomously commanding only the 30-second FS-24s-H20 shot clocks (for basketball) or the 30-second KIT-FS-30s shot clocks (for water polo).
Item codes and prices (not including VAT) VAT information
Art.259 - ...KIT-FS-30s , pair of 30s + 24V adapter + cables
Size: 2pz 41x29x8,5cm + cables cm. - Weight: 15.8kg.
Art.259-01 - ...FS-30s supplementary 30s display for KIT-FS-30s
Size: 41x29x8,5cm. - Weight: 5,1kg.
EUR 720.00
Art.308-01 - Console-700, multisport console with 7” touchscreen display
Size: 24.5x17x8.5cm. - Weight: 1.35kg.
Pictures: 1 | 2 | 3 » Request technical information » Request for a quote
Art.232-03 - Time-Console-03, additional console for chronometer and 24/14/30 second shot clock
Size: 12x8.2x2.5cm. - Weight: 0.32kg.
Art.233-10 - FS-24s-CONSOLE
Size: 28,3x10x6,8cm. - Weight: 1,2kg.
