FS-24s-CONSOLE (Art.233-10)
Control console for FS-series 24- and 30-second shot clock panels.
Suitable for Basketball and Water Polo.
The FS-24s-CONSOLE is used only if the Console-700 (art.308-01) is not at one’s disposal. It is used for autonomously commanding only the 24-second FS-24s-H20 shot clocks (for basketball) or the 30-second KIT-FS-30s shot clocks (for water polo). If used for commanding the FS-24s-1/2/3 models, only the 24-second shot clocks will be visualized on these models, while the game time will remain switched off.
Technical characteristics:
- Programming of three times [0 ~ 99 s], of one warning of end time [0 ~ 99 s], and of the length of sound [0 ~ 5 s].
- Managing times via specific buttons. If you prefer to manage times via levers, add the article "Time-Console-03" (art.232-03). See ACCESSORIES.
- Correction of time made easier via specific buttons.
- Panel horn: can be activated manually or automatically at end time, with 5 volume levels that can be adjusted directly from the keyboard.
- Brightness of the panels can be adjusted to 4 levels directly from the keyboard.
- Programmable counter direction (forward-backward).
- Alphanumeric display of all the main information for easy management of the panels: time counter (seconds and tenths), counter direction, loaded time and programmed times, brightness, and horn volume.
- Language selection for programming menu: English, French, Spanish, Italian, German.
- Highly reliable membrane keyboard: 5 million operations per key.
- 2 serial data outputs. Two connectors ensure operational continuity in case one of the 2 outputs fails.
- Strong container made from powder-coated aluminum.
- Guarantee: 2 years. (info).
- Dimensions and weight: 28.5 x 7.5 x 10.5cm, 1.3kg.
- Power supply: 12Vdc ±10%, 200mA Max. This makes it possible to supply power to the console with a 12V external battery (see ACCESSORIES) or using the supplied power adaptor (100-240V) with the type of plug to be selected when ordering.
ACCESSORIES (not included):
-
Time-Console-03 (Art.232-03)
This is a supplementary console that is small and economical, making it easier to operate the 24 second shot clock. Characteristics:
- Has 3 practical small control levers.
- 2m cable to connect with FS-24s-CONSOLE.
-
Rechargeable battery (art.828-1)
Useful to power FS-24s-CONSOLE without having to be plugged into the main electrical grid. Typical duration over 180 hours.
Item codes and prices (not including VAT) VAT information
Art.233-10 - FS-24s-CONSOLE
Size: 28,3x10x6,8cm. - Weight: 1,2kg.
Art.232-03 - Time-Console-03, additional console for chronometer and 24/14/30 second shot clock
Size: 12x8.2x2.5cm. - Weight: 0.32kg.
Art.828-1 - ...Rechargeable Battery 12V-7Ah, with DC plug
Size: 15x12x6,5cm. - Weight: 2.1kg.

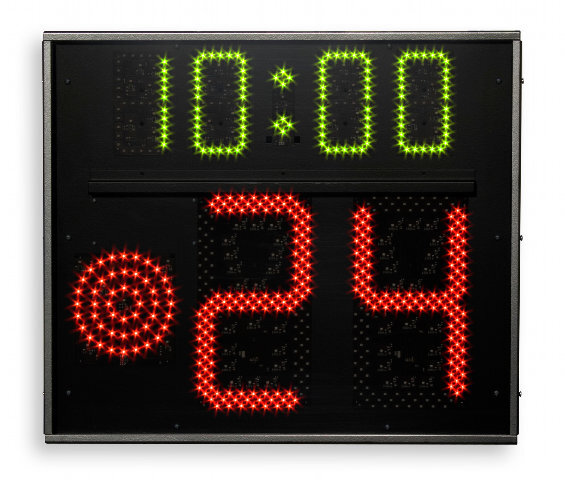

Art.258-1 - ...#FS-24s-1 One-sided shot clock and game time
Size: 70,5x60x11,5cm. - Weight: 11kg.

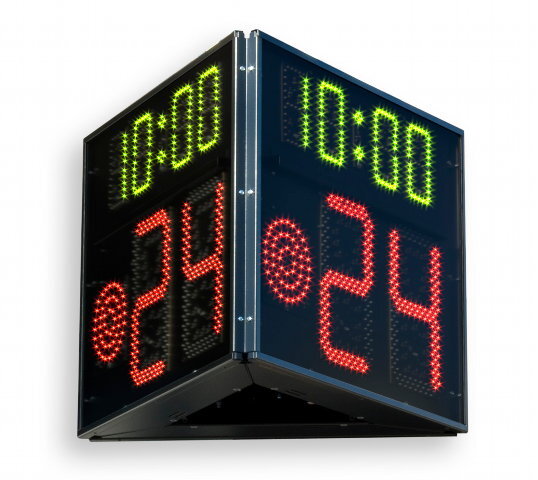

Art.258-3 - ...#FS-24s-3 Three-sided shot clock and game time
Size: 74x65xH60cm. - Weight: 29kg.

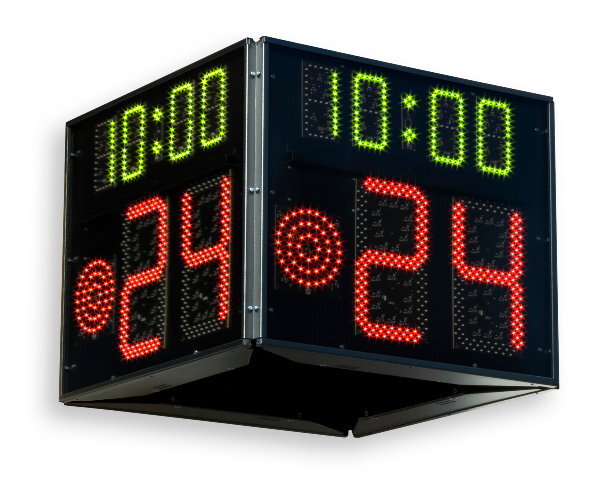

Art.258-4 - ...#FS-24s-4 Four-sided shot clock and game time
Size: 75x75xH60cm. - Weight: 38kg.
