24-second wireless display panels for basketball.
30-second Indicators for water polo.
24 and 30-second display operating on battery and via radio communication.
SPARE PARTS
Item codes and prices
WSC-24s
(art.268-10 e art.268-02)

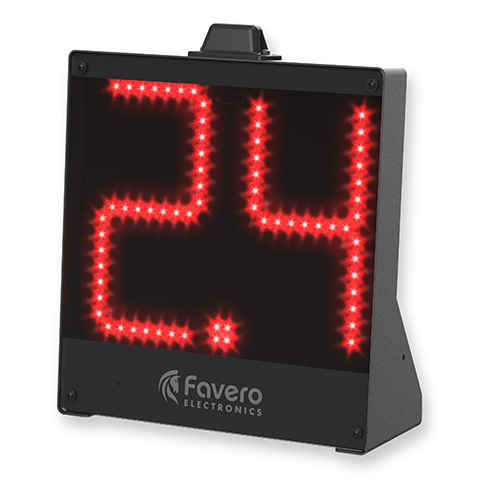

Wireless 24 -30 second shot clock display. No power or transmission cable required. Ideal for basketball and water polo, FIBA approved.
Overview
- Immediate floor mounting, no cables required.
- Rechargeable long-lasting (˃25h) internal power bank.
- Reliable wireless communication.
- Resistant to ball impact.
- FIBA approved level 2 (info, FIBA certificate).
- Multilingual touchscreen control using the Console-700.
- Complete KIT (art.268-02) with 2 displays + control console available + Case-700.
- Guarantee: 2 years. (info)
Specifications
- Shot clock for basketball or water polo (adjustable).
- Digit height: 20 cm
- Visibility distance and angle: 70m, 150°.
- Red light for end of possession.
- Tenths of seconds displayed in the last 5 seconds for basketball, in accordance to FIBA rules.
- Resistant to ball impact (DIN 18032-3 standard) and 1 m drops (EN 62368-1 standard).

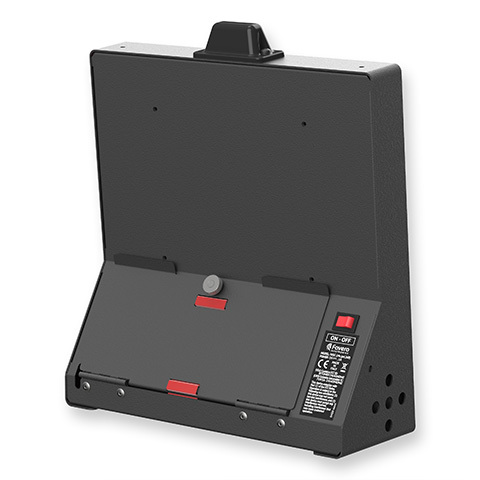

- Rechargeable, long-lasting (>25h) internal power bank. The power bank supplied with the device works as a battery; it is widely available and can be easily replaced if necessary. To recharge it, use a common smartphone charger with micro USB port. The charger is not supplied. The display can also be powered directly by a USB 2A output charger.
- 105db/1m buzzer.
- Reliable wireless communication: 2.4GHz in FHSS (Frequency Hopping Spread Spectrum) mode to avoid interferences.
- Control via Console-700, not included. See ACCESSORIES.
- Dimensions: 28.5x32x10cm
- Weight: 2.75 kg
- Guarantee: 2 years. (info)
ACCESSORIES
-

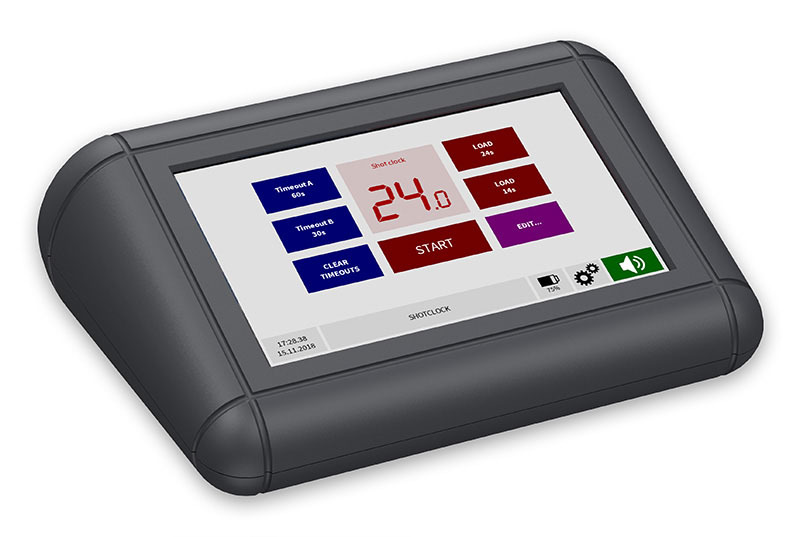

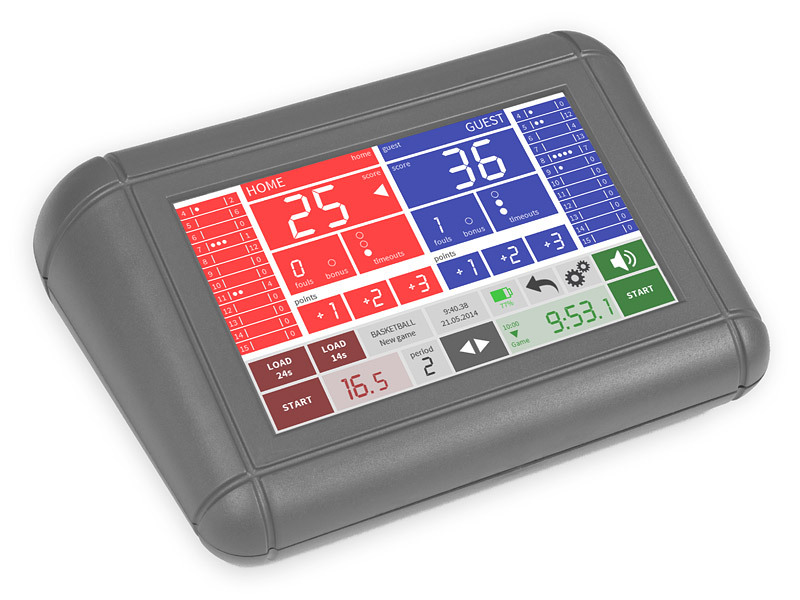

Art. 308-01 Console-700 (info)
This product is necessary to manage the shot clocks.
The console can also control all FC- and FS-series scoreboards.

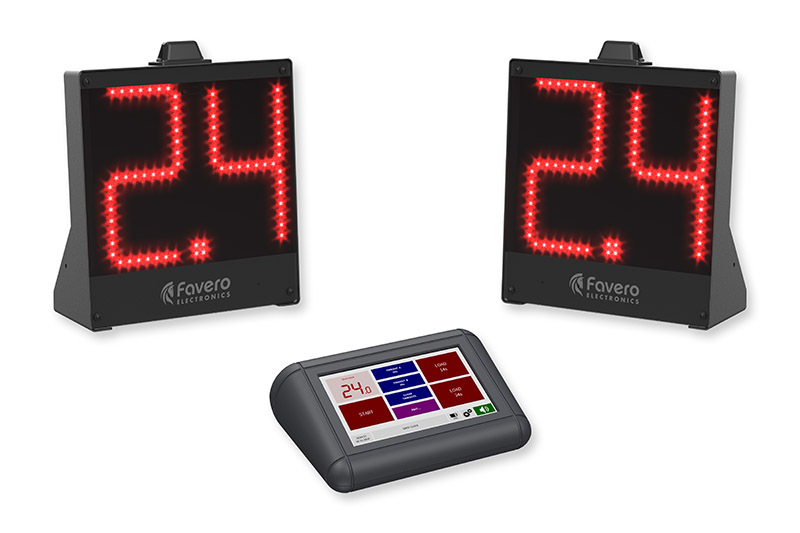

If you do not have a Console-700, we suggest you purchase the complete KIT: Art. 268-02 KIT 2 WSC-24s Wireless 24-30s displays + Console-700 which includes:
- 2 art. 268-10 WSC-24s Wireless 24-30s displays
- 1 art. 308-01 Console-700 (info)

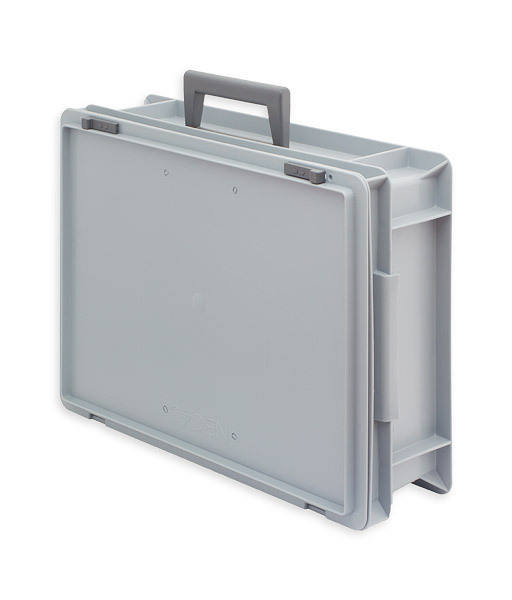

- 1 art. 308-10 Case-700, case for Console-700

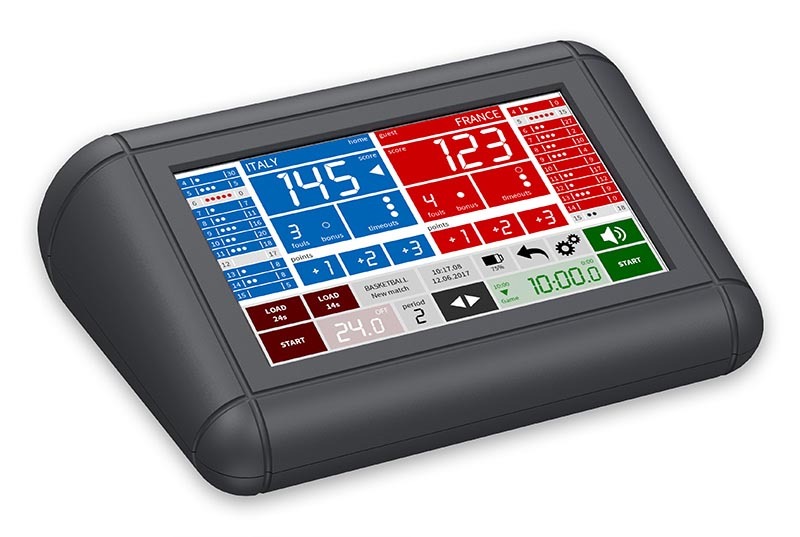

The 24 seconds can be managed from a specific menu (picture) or even from a general menu (picture). -
Art. 232-03 Time-Console-03 (info)
Small optional console. External control to connect to the Console-700, perfect to allow the shot clock operator to operate separately from the scorer.
