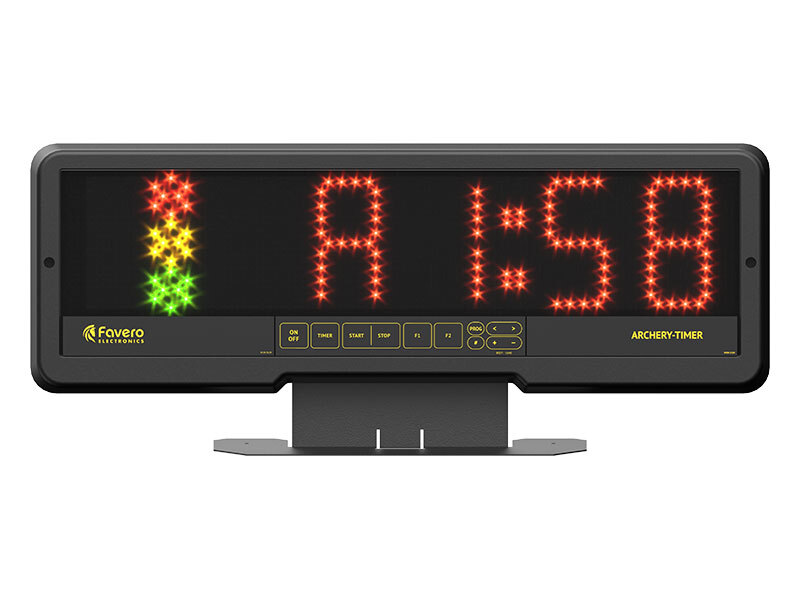

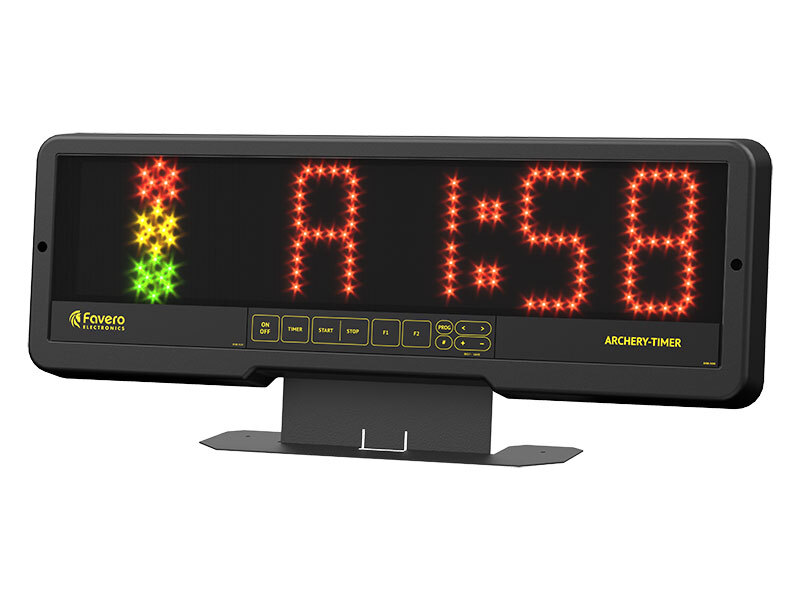

ARCHERY TIMER (Art.155-05)

Chronometer with signal lights for archery competition



FEATURES

ARCHERY TIMER is ideal for programming, timing and displaying the time (minutes:seconds) of archery matches, according to international federation (WA-FITA) rules, but limited to the use in competitions where repetition of views is not required and the viewing distance is limited to 30 m.
It is mostly recommended for archers, coaches, clubs, referees and organizers of archery competitions.

  • 9 different shooting sequences can be set, each quickly activated by keyboard or remote control. For each sequence are programmable:
    - the mode [contemporary shooting, alternate, make up arrow],
    - the duration of the call times [0 ~ 99 s], shooting [0 ~ 10 min], advice [0 ~ 10 min] and the number of turns [1 ~ 3].
  • The various match stages are automatically signaled by the activation of signal lights and audible alerts.
  • Choice of 2 types of sounds and 4 levels of volume [off, low, medium, high].
  • Automatic display of the shooting turn [A, b, Ab, Cd, EF].
  • Possibility of pausing the game at any time in an emergency, with an appropriate acoustic signal.
  • Time management manual or fully automatic.
  • Modality of time count: forwards or backwards.
  • Digit height 9cm, easily visible for over 30m, with 4 adjustable brightness levels.
  • Robust insulated plastic container.
  • High quality flat membrane keyboard, with 5 million contacts guaranteed for every key.
  • Power supply: AT is provided with a power supply 100-240V / 12VDC. The type of plug can be specified when ordering.
    Power can also be supplied using an external rechargeable battery (see Optional Accessories, Art. 828 ).
  • Size and weight: 56 x 23.5 x 9 cm - 2.05kg.

ACCESSORIES INCLUDED

Power supply 100-240V/12VDC. (Art.954)

Infrared TELECONTROL (Art.152-10)
   Range: 15m.
   Power supply: with a 9-Volt alkaline battery.
   Lifespan: about 140.000 operations.
   Sturdy small alluminum box: 14.5 x 5.5 x 2.2 cm.
   Membrane keyboard which does not get ruined by dirt or liquids.



OPTIONAL

For the battery power supply:

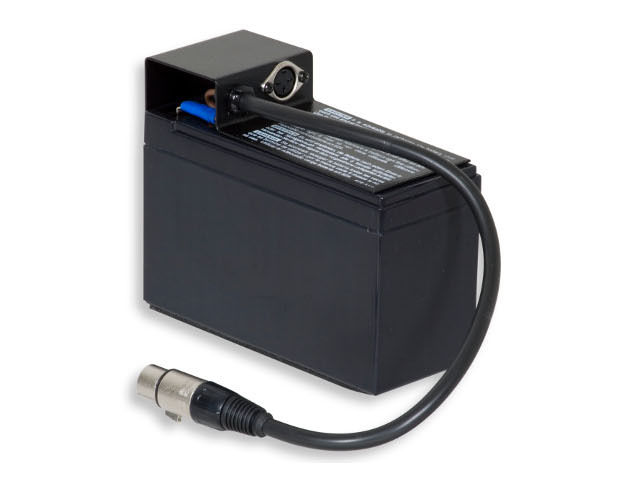

  • Art.828 - RECHARGEABLE BATTERY 12V/6-7Ah. The typical battery duration is about 16 hours.

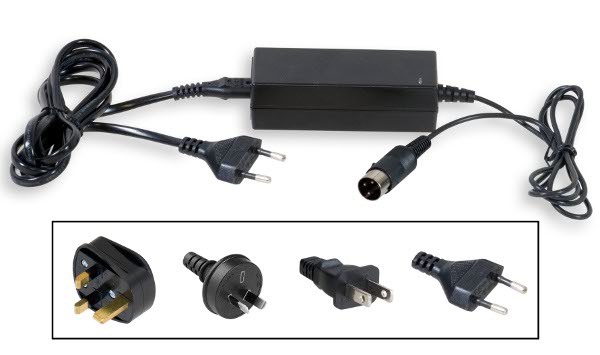

  • Art.169 - Battery charger 100-240V/13,8VDC 1,5A.

Item codes and prices (not including VAT) VAT information
