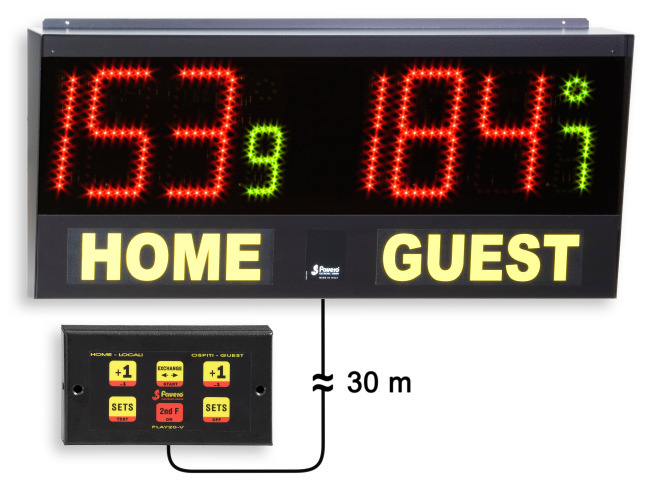

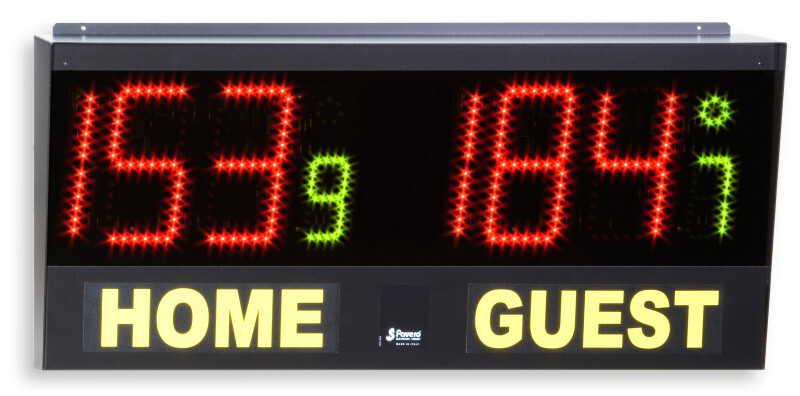

PLAY30-V (Art.345 Art.345T Art.345D)
Electronic scoreboard for volleyball, five-players football, table tennis, etc.
- Art. 345 PLAY30-V with only keys console
- Art. 345D PLAY30-V with console display
Visualized functions
- SCORES: from 0 to 199 each side.
- SET/BONUS: from 0 to 9 each side.
- POSSESSION/PRIORITY/TURN: right or left hand side.
Technical data
- Numbers: 17.4cm high.
- SET/BONUS/FOUL: 9.4cm high.
- Visibility. Scores: 60m. Set/Bonus/Fouls: 30m.
- It is supplied with a keyboard already connected by means of a cable 30 meters long. The eventual extension of the cable is very easy because it is a cable with only 2 conductors and without any polarity.
- The sturdy membrane keyboard with big, coloured keys is reliable and easy to use.
- INSCRIPTIONS ADHESIVE are available in (LOCALI-OSPITI) Italian, (HOME-GUEST) English, (HEIM-GÄSTE) German, (LOCAUX-VISITEURS) French and (LOCALES-VISITANTES) Spanish. Specify in the order the wished tongue.
- Power supply: 230Vac, 20VA MAX.
- Sturdy Metal container.
- Scoreboard measurements: width 85cm, height 38cm, depth 11cm.
- Keyboard measurements: width 15.5cm, height 9cm, depth 1.5cm.
- Total weight: 9.5kg.
Other versions

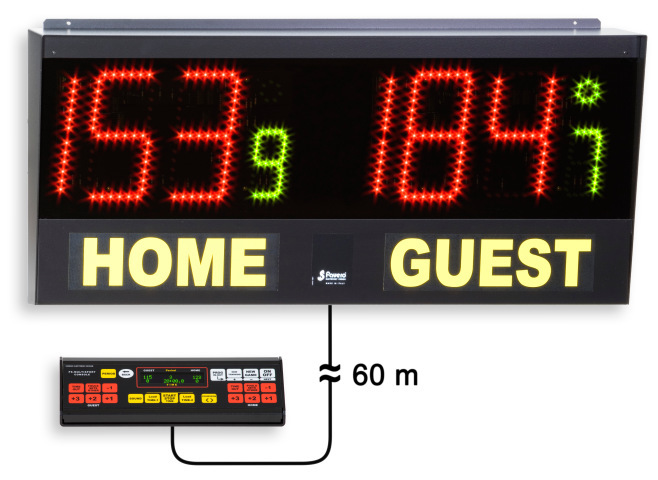

PLAY30-V with luminous console display (Art.345D)
The link between the scoreboard and the console takes place through a wire phone: in endowment is given a 60m long cable. The console with display presents the following advantages:
- it is necessary if the console operator does not have a direct vision of the scoreboard and it performs the management easier;
- it disposes of a greater number of keys and tasks;
- Can be connected up to 4 scoreboard repeaters PLAY30V-REPEATER (see options).
