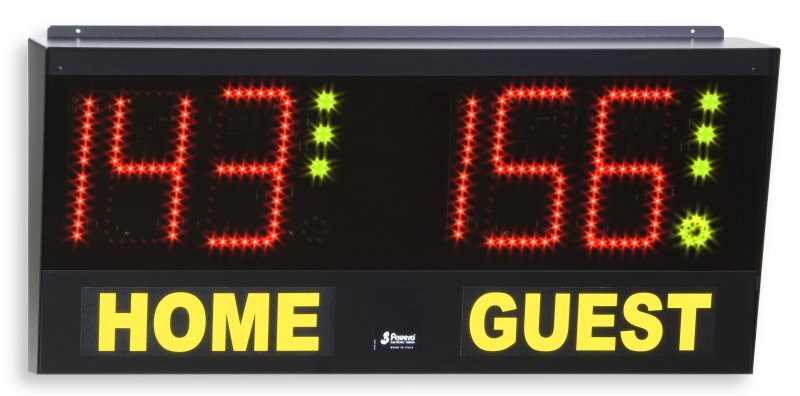

PLAY20-V (Art.344, Art.344T, Art.344D)

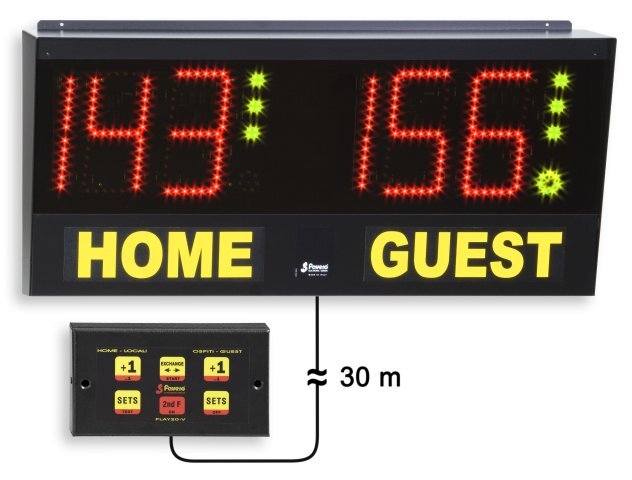

• Art. 344 PLAY20-V Volleyball scoreboard with only keys console
• Art. 344T PLAY20-V Volleyball scoreboard with infrared remote control
• Art. 344D PLAY20-V Volleyball scoreboard with console display

VISUALIZED FUNCTIONS

• SCORES: from 0 to 199 each side.
• SET/BONUS: from 0 to 3 each side.
• POSSESSION/PRIORITY/TURN: right or left hand side.

TECHNICAL DATA

• Numbers: 17.4cm high.
• Scores Visibility: 60meters.

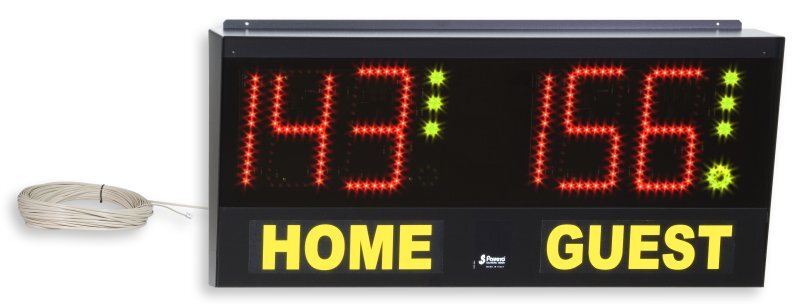

  It is supplied with a keyboard already connected by means of a cable 30 metres long. The eventual extension of the cable is very easy because it is a cable with only 2 conductors and without any polarity.

• The sturdy membrane keyboard with big, coloured keys is reliable and easy to use.

• On request, adhesive writings, in various languages: HOME-GUEST, HEIM-GÄSTE, LOCALI-OSPITI, etc..
• Power supply: 230Vac, 20VA MAX.
• Sturdy Metal container.
• Scoreboard measurements: width 85cm, height 38cm, depth 11cm.
• Keyboard measurements: width 15.5cm, height 9cm, depth 1.5cm.
• Total weight: 9.5kg.

Other versions

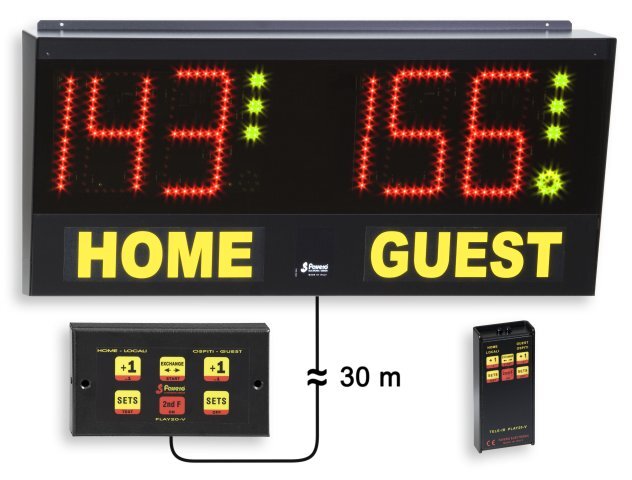

PLAY20-V Volleyball scoreboard with remote control (Art.344T)

Available the version with infrared remote control in which, any way the keyboard with cable long 30 meters is given in endowment. Technicals details of the remote control:

• 25 meters range.
• Strong covering in aluminium and of contained dimensions: 11 x 4.8 x 2.2cm.
• Keyboard with a membrane unassailable from dirty and liquids.

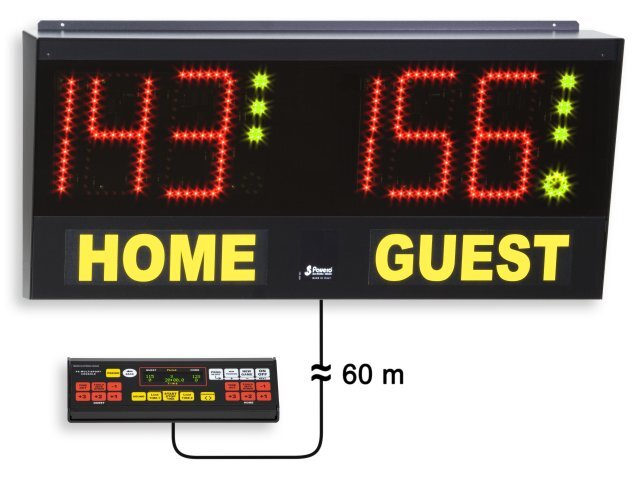

PLAY20-V Volleyball scoreboard with luminous console display (Art.344D)

The link between the scoreboard and the console takes place through a wire phone: in endowment is given a 60m long cable. The console with display presents the following advantages:

• it is necessary if the console operator does not have a direct vision of the scoreboard and it performs the management easier;
• it disposes of a greater number of keys and tasks;
• Can be connected up to 4 scoreboard repeaters PLAY20V-REPEATER (see options).

Options

PLAY20V-REPEATER (ART.344R): use of a second scoreboards as repeater.

Some times can be useful install two or more scoreboards to improve the visualization by the audience and/or of the players.  It is possible to connect till four PLAY20V-REPEATER (art.344R) to the "Console display" of the art.344D PLAY20-V model.  The link among the console and a scoreboard takes place by a telephone cable (in endowment is along 60 meters).
