CONTROL-CARDS (Art.733 - Art.734)
CONTROLLER FOR PACKS OF PLAYING CARDS

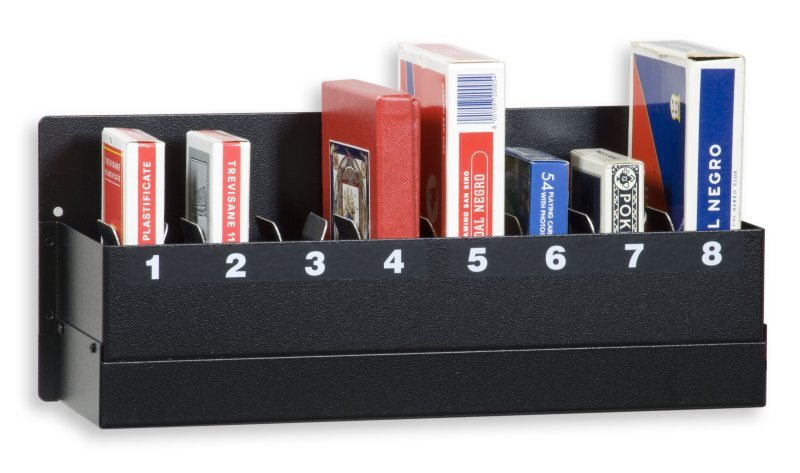

Art.733 - CONTROL-CARDS-8 : For the control of 8 packs of playing cards.

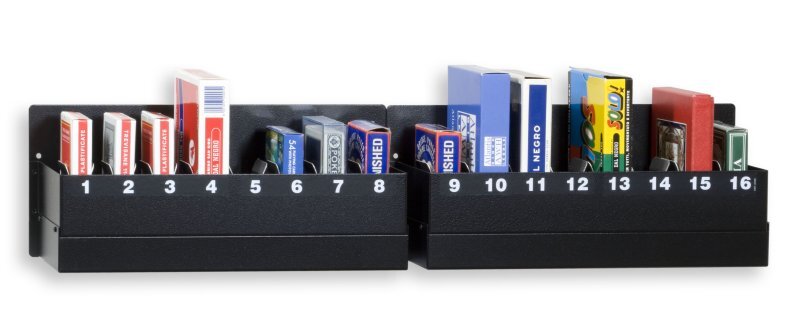

Art.734 - CONTROL-CARDS-16 : For the control of 16 packs of playing cards.
The CONTROL-CARDS is a useful accessory for public places where tables for card playing are used. It is connected to a timer clock/tariff meter, in such a way as to automatically define the amount to be paid, based on a pre-determined time tariff and on the time-length of use of the table.
TECHNICAL DATA
- Convenient container for packs of cards with the numbering of the same clearly visible. The maximum dimensions of the pack that can be inserted are: width 100mm, thickness 30mm.
- Micro-switch on the bottom of each pack container which registers the presence of the same.
- Easy connection to timer clock/tariff meter by means of a telephone cable which is included.
- Two models of timer clock/tariff meter are available: the MICRO8, which can control up to 8 tables, and the MICRO32, that can control up to 32 tables.
- When a pack of cards is taken from the container, the time count automatically starts for the corresponding table. The tables being counted are clearly visible on the timer clock/tariff meter.
- When a pack of cards is taken the lighting up of the table can be automatically carried out. This happens if the timer clock/tariff meter is also connected to the CONTROL-LAMP accessory (see leaflets MICRO8 and MICRO32).
- At the end of the game, when the cards are inserted into the container, the operator can visualise the amount to be paid.
- The timer clock/tariff meter model MICRO32, as well as registering the time tariff, permits the registration of food and drink consumed at the table.
Dimensions and weight:
- Art.733 - CONTROL-CARDS-8: 36.6 x 15 x 7.5cm - 1.7kg
- Art.734 - CONTROL-CARDS-16: 73.2 x 15 x 7.5cm - 3.4kg
