Console-700 art.308-01

Key features

• Multisport console allows the management of more than 18 sports.

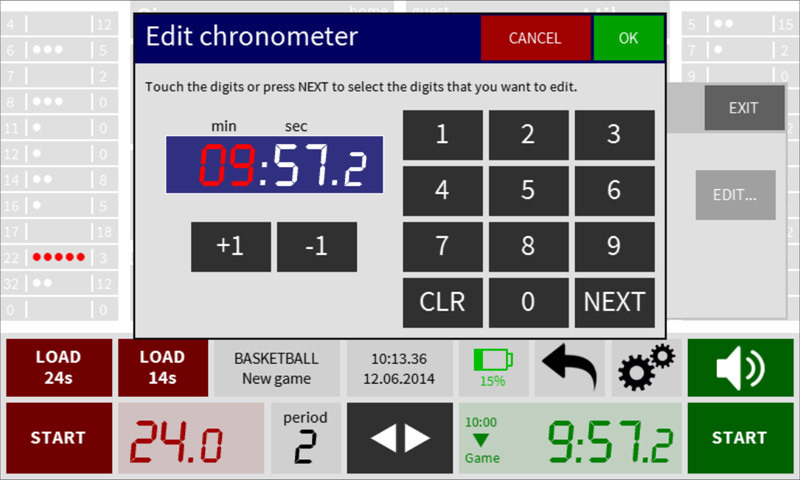

• 7" multilingual color touchscreen display.
• Intuitive use, with no need of written instructions.
• 14-hour average life rechargeable lithium battery.
• 2.4GHz radio transmission, with FHSS (Frequency Hopping Spread Spectrum) technology to avoid interference caused by other devices.
• USB port to easily update sports rules.
• Impact proof as per EN-60950 for movable equipment.
• Modern and ergonomic design, conceived for desktop and hand-held use.
• Supplied with power supply unit and battery charger.
• Guarantee: 2 years. (info)

Specifications

• 7" color touchscreen display.

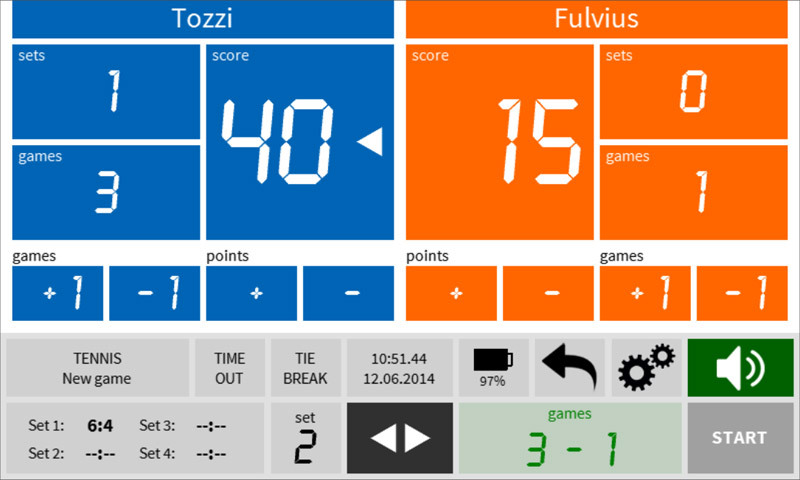

• Ideal for managing many different sports, such as basketball, 3x3 basketball, mini-basket, volleyball, water-polo, netball, football, futsal FIFA, futsal AMF, rink hockey, tennis, table tennis, badminton, boxing, wrestling and all the sports with the same features of other sports already managed.

• Intuitive use, with no need of written instructions.

• Multilingual. All the texts are displayed in the selected language: Italian, English, French, Spanish and German.

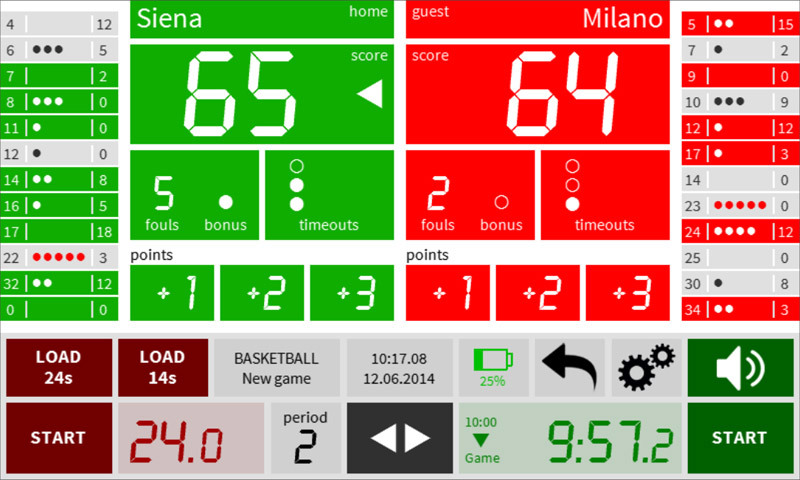

• All game information is displayed at the same time in the main sport screen, included statistics panels with fouls and points of each player.

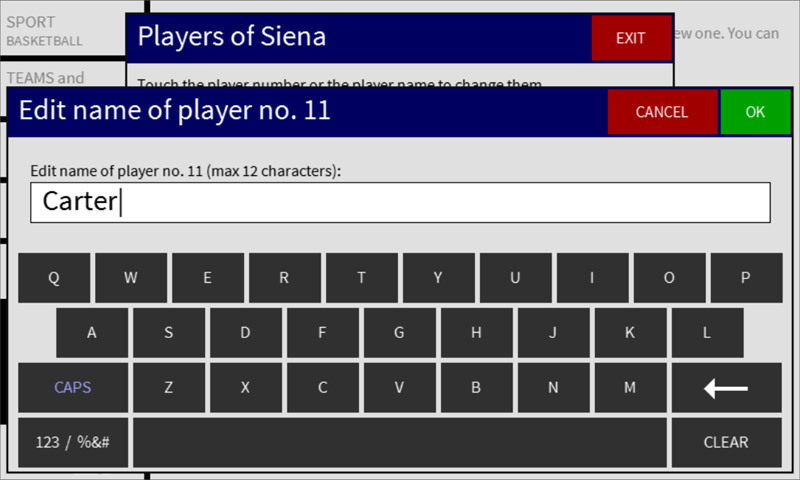

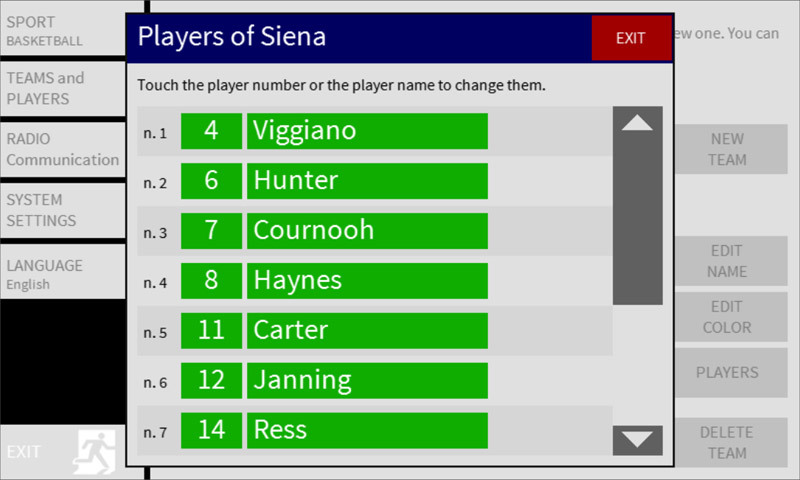

• Up to 75 teams and relevant players can be entered, memorized and retrieved.

• A color can be associated to each team; all the buttons assigned to a team are displayed with the associated color. This facilitates the operator and avoids mistakes.

• Wired and wireless communication with the scoreboards.

• Reliable wireless communication: by 2.4GHz FHSS (Frequency Hopping Spread Spectrum) radio transmission to avoid interferences. The use of a wireless system reduces costs by eliminating the need of a cable connection between console and scoreboards.

• Including a rechargeable lithium battery with 14-hour average life and battery charge level indicator. The console can be directly connected to the mains using the 100-240V universal power supply unit supplied with the console. The unit also serves as battery charger.

• Thanks to the battery power supply and the wireless communication requiring no cable connection, free positioning and movement is possible while using the console.

• USB port for easy software update in case of changes to sports rules. The update is automatically carried out by simply inserting the USB key containing the new software.

• Impact proof as per EN-60950 for movable equipment. Sturdy ABS case.

• Modern and ergonomic design, conceived for desktop and hand-held use.

• The shot clock and the chronometer can be managed either directly from the console or through the additional "Time-Console-03" consoles, art.232-03.

• Dimensions and weight. 24.5x17x8.5cm, 1.35kg.

• Guarantee: 2 years. (info)

Parts included in the supply:
• Power supply unit/battery charger.
• 5m cable, for scoreboard cable connection test, if necessary.

Product options, selectable after adding the article to the basket:
• Type of power supply unit/battery charger plug.

ACCESSORIES

Optional articles, to complete the product:

Art.308-10 Case-700, carrying case for Console-700
Sturdy carrying case for easy transport.

Art.232-03 Time-Console-03
Additional console, useful for the timekeeper or the 24/14/30 second shot clock operator.
