Available in 3 versions:
Art.253-01 KIT of Perimeter Light and Control Unit
Art.253-02 Control Unit
Art.253-03 Perimeter Light
Art.253-01
KIT of Perimeter Light and
Control Unit

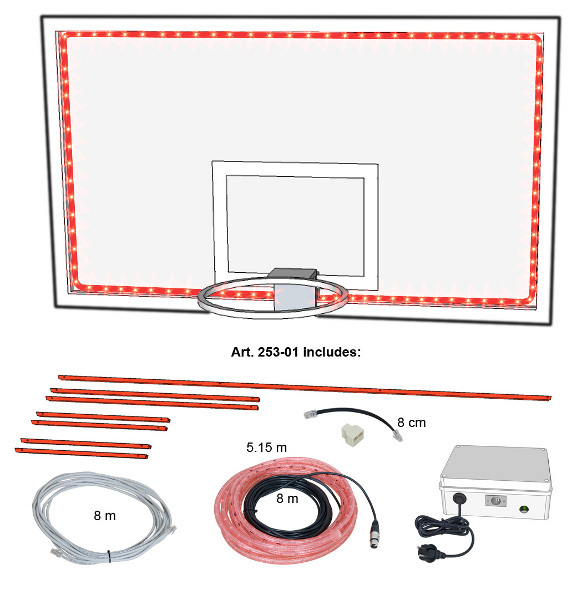

(picture)
This KIT is
installed when using FS-series 24-second shot clocks, as with the models FS-24s-1,
FS-24s-3, and FS-24s-4. The control signal for activating the perimeter light comes
from the same serial data cable that connects to the shot clocks.
For basketball courts, two of these items are required (one for each
basketball backboard).
The KIT includes
:
• Control Unit, ready to be
connected to the same serial data cable used for FS-series scoreboards. The
data cable receives information for the activation of the Perimeter Light.
• Perimeter light with an 8 m. long
cable to be connected to the control unit.
• Fastening brackets for the
perimeter light suitable for the majority of Basketball backboards.
• Connecting cables between the
Control Unit and the serial data cable that attaches to the 24-second shot clock.
Art.253-02
Control Unit (for Perimeter
Light not provided)

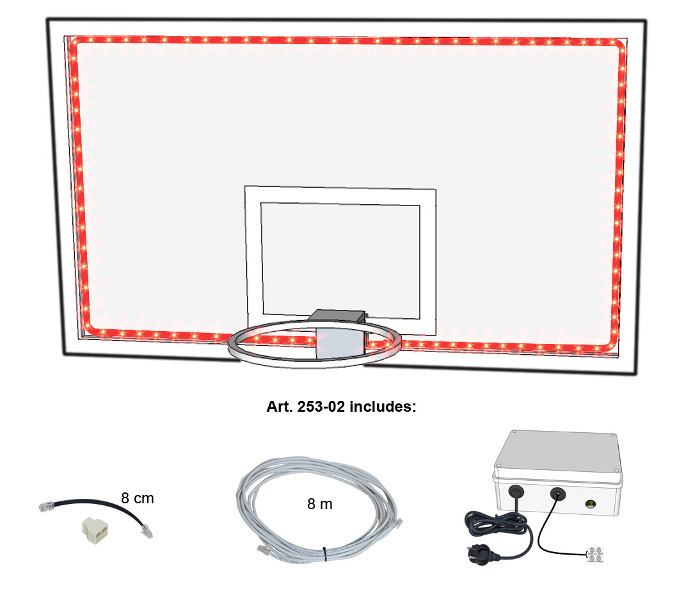

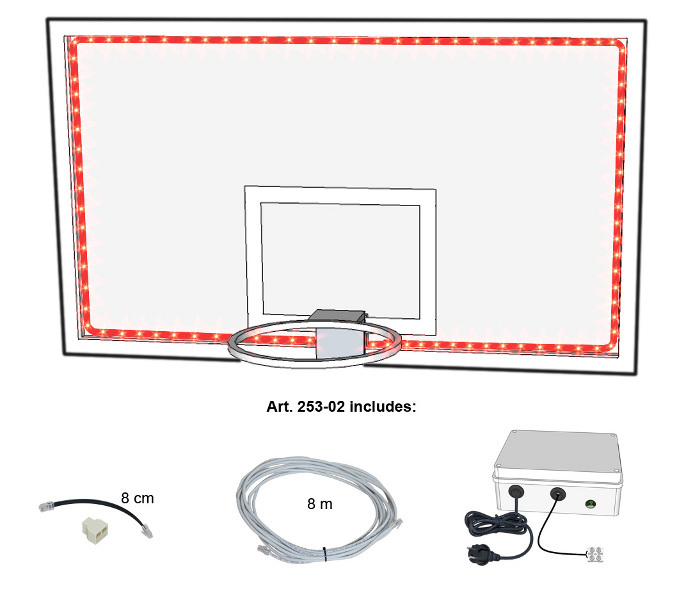

(picture)
This Control Unit
is used when you already possess a perimeter light from another manufacturer
but wish to install FS-series 24-second shot clocks, such as the models FS-24s-1,
FS-24s-2, and FS-24s-3. The Control Unit receives the control signal from the
same serial data cable that connects to the 24-second shot clock, and provides
a closing contact so that a Perimeter Light from a different manufacturer can
be controlled.
For basketball courts, two of these items are needed (one for each
basketball backboard).
Includes:
• Control Unit, ready
to be connected to the same serial data cable used for FS-series scoreboards. The
serial data cable receives information for the activation of the Perimeter
Light. The Control Unit provides, via an internal relay, a closing contact so
that a Perimeter Light from a different manufacturer can be controlled.
• Connecting cables between the
Control Unit and the serial data cable that connects to the 24-second shot
clock.
Art.253-03
Perimeter Light (without
Control Unit)

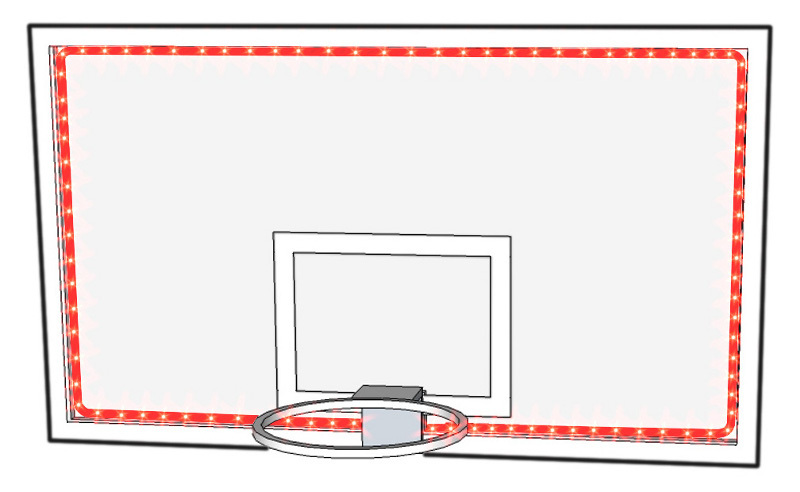

(picture)
This item is used
when you want to install a Favero Perimeter Light on systems with 24-second
shot clocks made by other manufacturers. In any case, such systems must
provide, via a relay, a closing contact so that the activation of the Favero
Perimeter Light can be controlled.
For basketball courts, two of these items are needed (one for each
basketball backboard).
Includes:
• Perimeter Light and its power
supply with a 230V input.
• Fastening brackets for the
perimeter light suitable for the majority of Basketball Backboards
•
Compliant with FIBA regulations.
•
Flexible and applicable to all types of Basketball backboards.
•
Length: 5.15m. in a single piece. Junction connectors are not necessary.
• Power supply: 12V, 1.3A.
Other Features
•
2 years warranty. (info).
• Power supply: 100-240V, 1A, 50-60 Hz. The type of plug can be chosen upon purchase.
