PLAY20d (Art.322, Art.322T)

• Art.322 - PLAY20d Two-side display. Ceiling fastening
• Art.322T - PLAY20d with infrared telecontrol

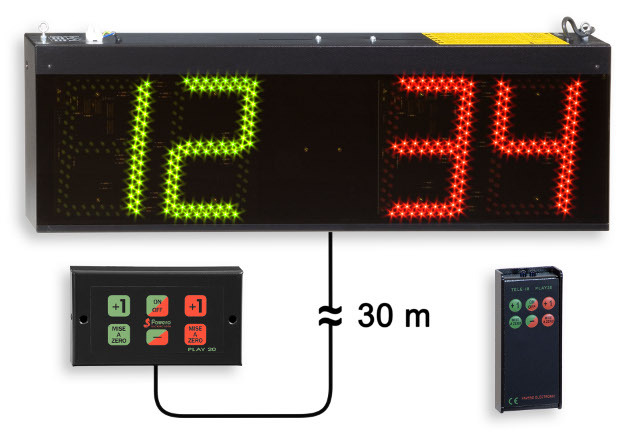

PLAY20d Two-side display. Ceiling fastening (Art.322)

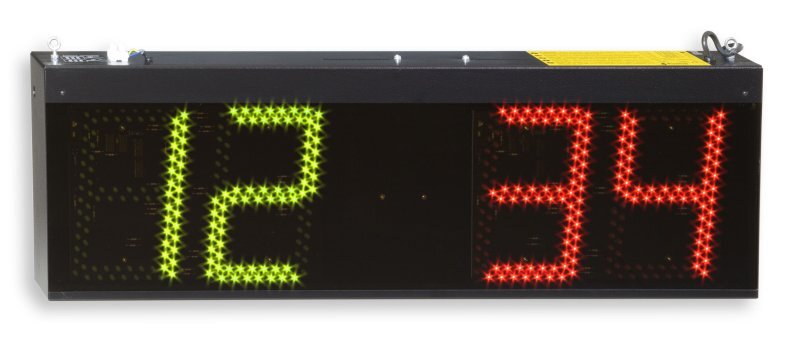

• 20cm-high figures, readable from 50m away. The different colour of the two numbering devices (red and green) makes it easier to recognise one's score.

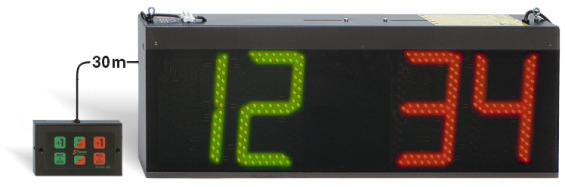

• It is supplied with a keyboard already connected by means of 30m-long cable. The cable can be extended very easily because it only has 2 conductors.

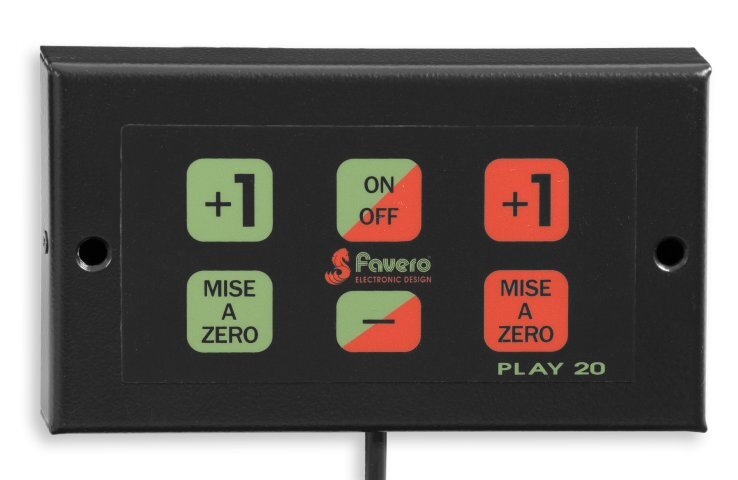

• The keyboard is extremely sturdy, with membrane-type keys (5 million operations), in red and green like the corresponding displays. Mistakes in score-taking, which can occur if the keyboard is not placed in front of the scoreboard, are thus avoided. It can be connected to a second keyboard (Art.324) to control the scoreboard from 2 positions.
• The following operations can be carried out from the keyboard: turn on and off the scoreboard, zero, increase or decrease single numbering devices. The score is up to 99.
• It is supplied with cable and supply plug.

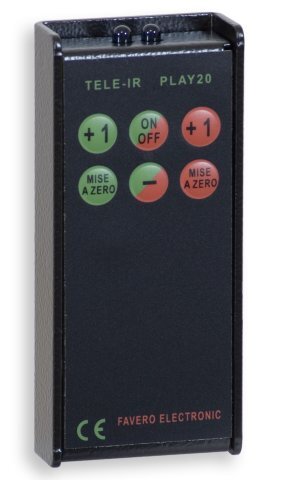

PLAY20d with infrared telecontrol (Art.322T)

• Telecontrol range: 25-35m.
• An innovative system allows more than one remote control to be used in the same room without the need for setting any code.
• Sturdy small alluminum box: 11 x 4.8 x 2.2cm.
• Flat keyboard which does not get ruined by dirt or liquids.

OPTIONS

• Art.326 additional infrared TELECONTROL (only for Art.322T).
• Art.328-8 ADVERTISING BOARD 85 x 8cm.

The advertising boards are prearranged to be fastened under the scoreboard.
